Material number 238359

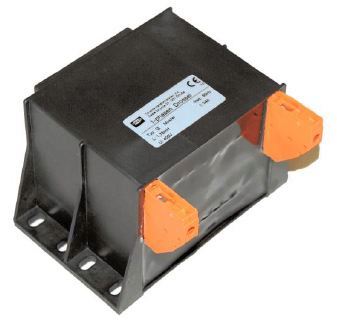

DC Link choke for 200V Inverter; 1,5kW; 4,3mH; 7,3A
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Voltage (V) | 200 |
| Current Type | DC |
| Inductance (mH) | 4,3 |
| Rated Capacity (kW) | 1,5 |
| Rated Current (A) (fa_ger_79) | 7,3 |
| Power Loss (W) | 19,1 |
| Protection Class | IP20 |
| Depth (mm) | 81 |
|---|---|
| Weight (kg) | 1,2 |
| Width (mm) | 112,5 |
| Height (mm) | 71,5 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 51 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 29 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
