Material number 209765

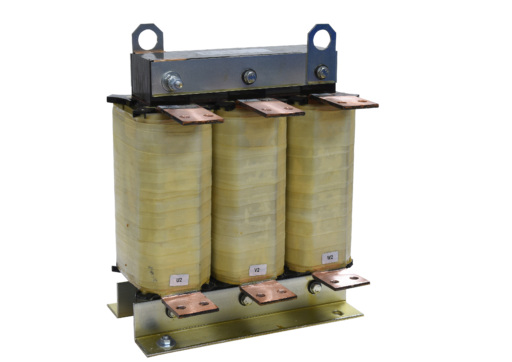

du/dt Filter for 400V Inverters; max. 790A; FT=2-16kHz; (W*H*D) 300*355*218mm
| Type | DU/DT FILTER |
|---|---|
| Series | ALL |
| Rated Capacity (kW) | 200V: -, 230V: -, 400V: 450 |
| Rated Current (A) (fa_ger_79) | 790 |
| Power Loss (W) | 590 |
| Protection Class | IP00 |
| Depth (mm) | 218 |
|---|---|
| Weight (kg) | 43 |
| Width (mm) | 300 |
| Height (mm) | 355 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 3000 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
