Material number 703111

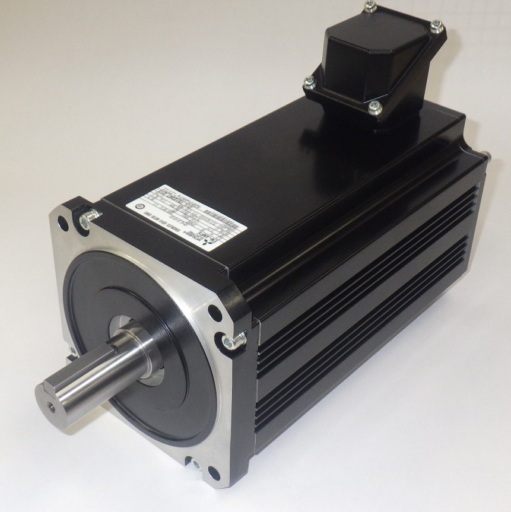

PM Motor; 2.2kW; Flange type; With key; IP65; 3000r/min
| Series | EM-A SERIES |
|---|---|
| Type | PM MOTOR |
| Rated Capacity (kW) | 2,2 |
| Rated Torque (Nm) | 7 |
| Maximum Torque (Nm) | 14 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4000 |
| Wiring | CONNECTOR |
| Inertia (kg*cm2) | 16,5 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 400 |
| Depth (mm) | 300 |
|---|---|
| Weight (kg) | 11,7 |
| Width (mm) | 125 |
| Height (mm) | 180,5 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Dangerous Goods Class | NO |
|---|---|
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
