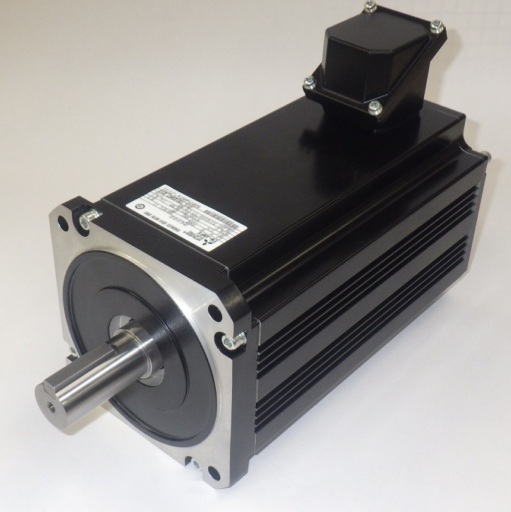

EM-AMFKW 1.5KW 340V 150HZ
Material number 703095
EM-AMFKW 1.5KW 340V 150HZ is a 400 V class Mitsubishi Electric EM-A permanent magnet motor rated 1.5 kW, 340 V, 150 Hz and 3000 r/min. It is suited to process conveyors and mixers in dusty or wet production areas. An FR-E800 inverter runs it under PM sensorless vector control, giving speed control and positioning without an encoder. The motor meets efficiency class IE5 for variable-speed motors. W denotes the IP65 dust and waterproof version, with a connector and oil seal. Flange mounting (F), a keyed shaft (K) and totally enclosed self-cooling are standard. It delivers 4.78 N·m rated torque, 200 % peak torque and up to 4000 r/min. Use it with a 1.5 kW FR-E840 inverter from the 400 V class.
FA-INVERTER: MOTOR
| Series | EM-A SERIES |
|---|---|
| Type | PM MOTOR |
| Rated Capacity (kW) | 1,5 |
| Rated Torque (Nm) | 4,78 |
| Maximum Torque (Nm) | 9,56 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4000 |
| Wiring | CONNECTOR |
| Inertia (kg*cm2) | 11,4 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP65 |
| Power Supply (V) | 400 |
PRODUCT DIMENSIONS & WEIGHT
| Depth (mm) | 270 |
|---|---|
| Weight (kg) | 9,5 |
| Width (mm) | 125 |
| Height (mm) | 180,5 |
CONFORMITY
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
ENVIRONMENTAL
| Dangerous Goods Class | NO |
|---|---|
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
Related Products
Frequently Asked Questions
It is rated 1.5 kW at 340 V and 150 Hz, with a rated speed of 3000 r/min. It is a 400 V class motor.
It has an IP65 enclosure, with an oil seal and connector wiring.
No. Driven by an FR-E840 inverter in PM sensorless vector control, it needs no encoder for speed and position control.
