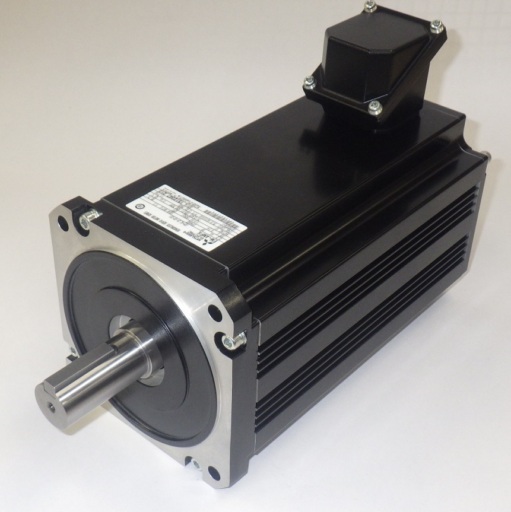

    703079-EM-AMFKW 0.75KW 330V 100HZ

    703079 - EM-AMFKW 0.75KW 330V 100HZ

    Material number 703079

    PM Motor; 0.75kW; Flange type; With key; IP65; 3000r/min

    Request for Quote Add to List
    FA-INVERTER: MOTOR
    Series EM-A SERIES
    Type PM MOTOR
    Rated Capacity (kW) 0,75
    Rated Torque (Nm) 2,39
    Maximum Torque (Nm) 4,78
    Rated Speed (rpm) 3000
    Maximum Speed (rpm) 4000
    Wiring CONNECTOR
    Inertia (kg*cm2) 5,43
    Brake NO
    Shaft Type KEYWAY
    Protection Class IP65
    Power Supply (V) 400
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 241
    Weight (kg) 6,4
    Width (mm) 110
    Height (mm) 165
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    ENVIRONMENTAL
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
