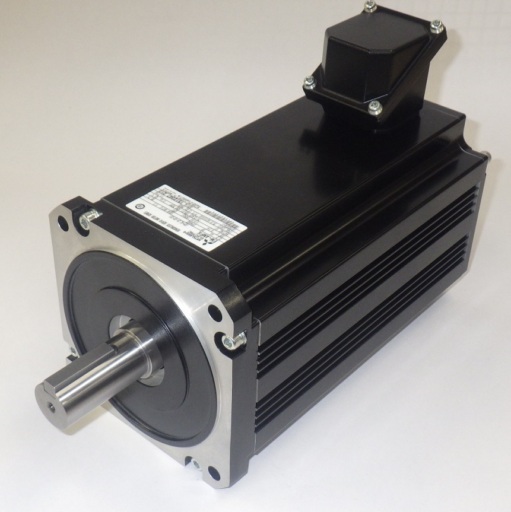

Material number 727050
PM Motor; 5.5kW; Flange type; Terminal Block; With key; 3000r/min
| Series | EM-A SERIES |
|---|---|
| Type | PM MOTOR |
| Rated Capacity (kW) | 5,5 |
| Rated Torque (Nm) | 17,5 |
| Maximum Torque (Nm) | 35 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4000 |
| Wiring | TERMINAL BLOCK |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP44 |
| Power Supply (V) | 400 |
| CE | COMPLIANT |
|---|
| Dangerous Goods Class | NO |
|---|
