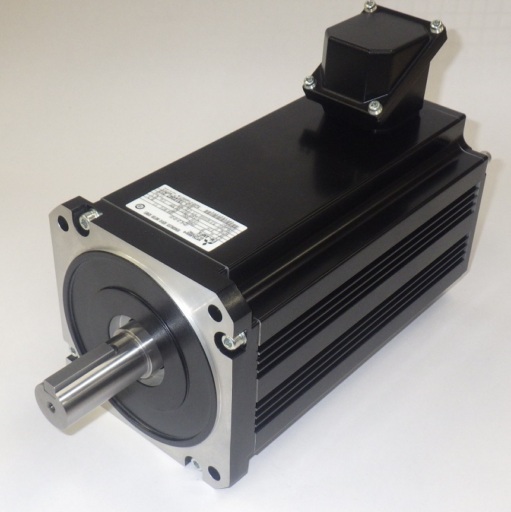

EM-AMFK 7.5KW 330V 150HZ
Material number 703136
The Mitsubishi Electric EM-AMFK 7.5KW 330V 150HZ is a 7.5 kW EM-A series permanent magnet motor rated 330 V, 150 Hz and 3000 r/min. It is suited to horizontal conveyors, mixers and simple positioning axes. It runs encoderless from FR-E840 inverters using PM sensorless vector control. The motor meets efficiency class IE5 for variable-speed motors. This version is IP44 rated, with lug-type connections inside a terminal box. It has a flange mount (F), keyed shaft (K) and totally enclosed self-cooled frame. Rated torque is 23.9 N·m, peak torque 200 % and maximum speed 4000 r/min. Use it with a 7.5 kW FR-E840 inverter from the 400 V class. Initial PM parameter setup (Pr.998) is required on the inverter before operation.
FA-INVERTER: MOTOR
| Series | EM-A SERIES |
|---|---|
| Type | PM MOTOR |
| Rated Capacity (kW) | 7,5 |
| Rated Torque (Nm) | 23,9 |
| Maximum Torque (Nm) | 47,8 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4000 |
| Inertia (kg*cm2) | 109 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP44 |
| Power Supply (V) | 400 |
PRODUCT DIMENSIONS & WEIGHT
| Depth (mm) | 397 |
|---|---|
| Weight (kg) | 34 |
| Width (mm) | 176 |
| Height (mm) | 257,5 |
CONFORMITY
| CE | COMPLIANT |
|---|
ENVIRONMENTAL
| Dangerous Goods Class | NO |
|---|---|
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
Related Products
Frequently Asked Questions
It is rated 7.5 kW at 330 V and 150 Hz, with a rated speed of 3000 r/min. It is a 400 V class motor.
Typical applications include horizontal conveyors, mixers and simple positioning axes.
It delivers 23.9 N·m rated torque, 200 % peak torque and a maximum speed of 4000 r/min.
