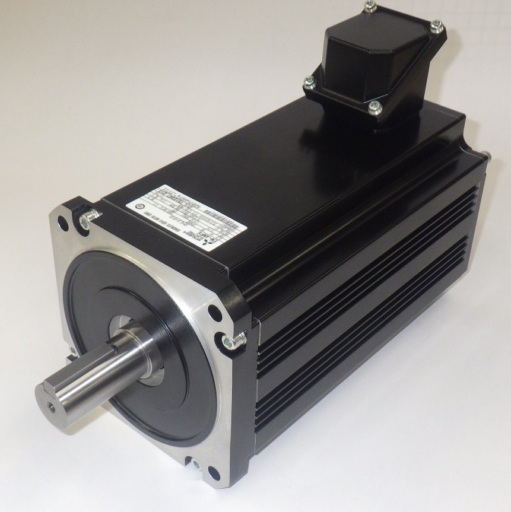

    679097-EM-AMFBKW 0.4KW 160V 100HZ

    679097 - EM-AMFBKW 0.4KW 160V 100HZ

    Material number 679097

    PM Motor; 0.4kW; Flange type; With brake; With key; IP65; 3000r/min

    Request for Quote Add to List
    FA-INVERTER: MOTOR
    Series EM-A SERIES
    Type PM MOTOR
    Rated Capacity (kW) 0,4
    Rated Torque (Nm) 1,27
    Maximum Torque (Nm) 2,54
    Rated Speed (rpm) 3000
    Maximum Speed (rpm) 4000
    Wiring CONNECTOR
    Inertia (kg*cm2) 4,03
    Brake YES
    Shaft Type KEYWAY
    Protection Class IP65
    Power Supply (V) 200
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 246
    Weight (kg) 6,7
    Width (mm) 110
    Height (mm) 173
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    ENVIRONMENTAL
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
