Material number 166168

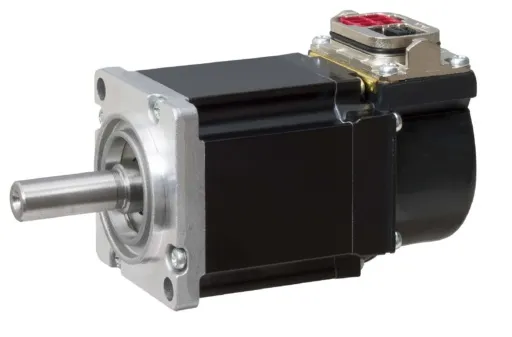

Servomotor, Motor characteristics: 1.3 Nm 3000 1/min 400 W, IP 65
| Series | MELSERVO-J3 |
|---|---|
| Type | HF-KP |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,4 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 1,3 |
| Maximum Torque (Nm) | 3,8 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 0,42 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP65 |
| Current Type | AC |
| Encoder Type | 18-BIT |
| Encoder Resolution (p/rev) | 262144 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Width (mm) | 60 |
|---|---|
| Height (mm) | 60 |
| Depth (mm) | 98,5 |
| Weight (kg) | 1,5 |
| Discontinued (EOL) | 29.06.2017 |
|---|---|
| Last Time Buy (LTB) | 31.01.2019 |
| End of Service (EOS) | 31.05.2026 |
| Selling Status | Standard |
|---|
| Cardboard (g) | 0,0 |
|---|---|
| Other paper (g) | 36,0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 2,0 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
