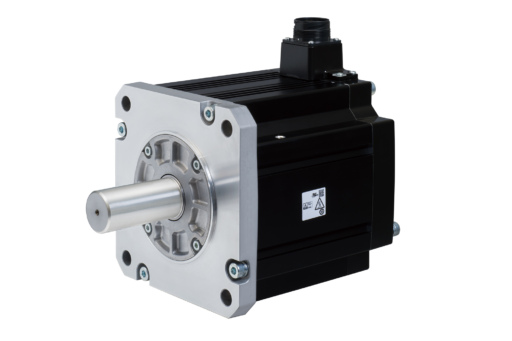

Material number 573840
Servomotor; HK-ST Series; Power 3,5 kW; Torque 16,7 Nm, max. 50,1 Nm ;Safety
| Series | MELSERVO-J5 |
|---|---|
| Type | HK-ST |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 3,5 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 16,7 |
| Maximum Torque (Nm) | 50,1 |
| Rated Speed (rpm) | 2000 |
| Maximum Speed (rpm) | 3500 |
| Inertia (kg*cm2) | 53,6 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 26-BIT |
| Encoder Resolution (p/rev) | 67108864 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Width (mm) | 176 |
|---|---|
| Height (mm) | 228,8 |
| Depth (mm) | 237,5 |
| Weight (kg) | 15 |
| Selling Status | Standard |
|---|
| Cardboard (g) | 1100 |
|---|---|
| Other paper (g) | 35 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 28 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| Dangerous Goods Class | NO |
|---|---|
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
