Material number 229366

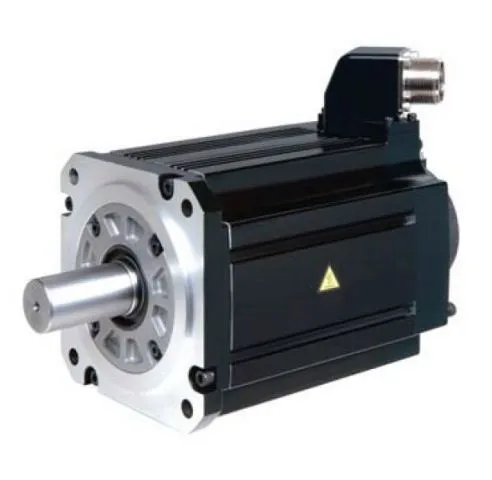

Servomotor, Rated Output 2000 W; Rated torque 6.37 Nm, max. torque 19.1 Nm
| Series | MELSERVO-J3 |
|---|---|
| Type | HF-JP |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 3,5 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 6,37 |
| Maximum Torque (Nm) | 19,1 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 6000 |
| Inertia (kg*cm2) | 5,42 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP67 |
| Current Type | AC |
| Encoder Type | 18-BIT |
| Encoder Resolution (p/rev) | 262144 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Width (mm) | 90 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 281 |
| Weight (kg) | 8,9 |
| Discontinued (EOL) | 29.06.2017 |
|---|---|
| Last Time Buy (LTB) | 31.01.2019 |
| End of Service (EOS) | 31.05.2026 |
| Successor | 261552 |
| Serial No. on the Box | QR1 |
| Selling Status | Standard |
|---|
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
