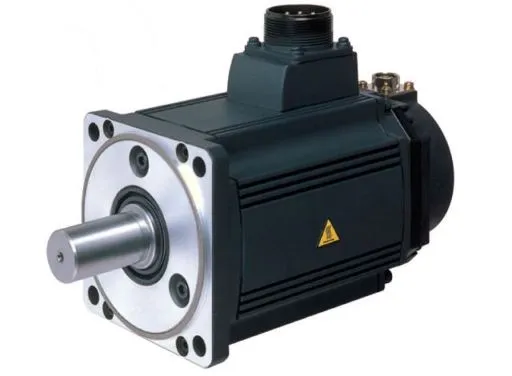

    168664-HC-RP203B

    168664 - HC-RP203B

    Material number 168664

    Servomotor, Rated Output 2.000 W; Rated torque 6.37 Nm, max torque 15.9 Nm

    Request for Quote Add to List
    FA-SERVO-MOTION: SERVO MOTOR
    Series MELSERVO-J3
    Type HC-RP
    Power Supply (V) 200
    Rated Capacity (kW) 2
    Inertia ULTRA-LOW INERTIA
    Rated Torque (Nm) 6,37
    Maximum Torque (Nm) 15,9
    Rated Speed (rpm) 3000
    Maximum Speed (rpm) 4500
    Inertia (kg*cm2) 2,65
    Brake YES
    Shaft Type STRAIGHT SHAFT
    Protection Class IP65
    Current Type AC
    Encoder Type 18-BIT
    Encoder Resolution (p/rev) 262144
    CONFORMITY
    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
    PRODUCT DIMENSIONS & WEIGHT
    Width (mm) 100
    Height (mm) 100
    Depth (mm) 233,5
    Weight (kg) 8,3
    LIFE CYCLE
    Discontinued (EOL) 29.06.2017
    Last Time Buy (LTB) 31.01.2019
    End of Service (EOS) 31.05.2026
    Successor 262903
    Serial No. on the Box QR1
    CAMPAIGNS
    Selling Status Standard
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class NO
    Dangerous Goods Identifier NO
    RoHS Compliance COMPLIANT
    WEEE B2B

    Related Products

    168665-HC-RP353B 3.5KW 3000RPM

    HC-RP353B 3.5KW 3000RPM

    Material No: 168665

    Servomotor, Rated Output 3.500 W; Rated torque 11.1 Nm, max torque 27.9 Nm
    229358-HF-JP153 1.5KW 3000RPM

    HF-JP153 1.5KW 3000RPM

    Material No: 229358

    Servomotor, Rated Output 1500 W; Rated torque 4.77 Nm, max. torque 14.3 Nm
    229366-HF-JP203B 2KW 3000RPM

    HF-JP203B 2KW 3000RPM

    Material No: 229366

    Servomotor, Rated Output 2000 W; Rated torque 6.37 Nm, max. torque 19.1 Nm

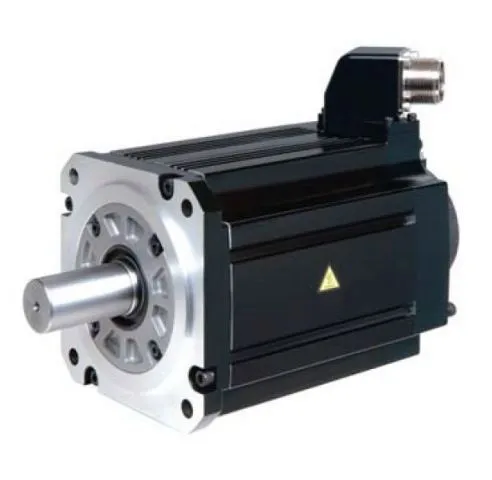

    227022-HF-JP534B 0.5KW 3000RPM
