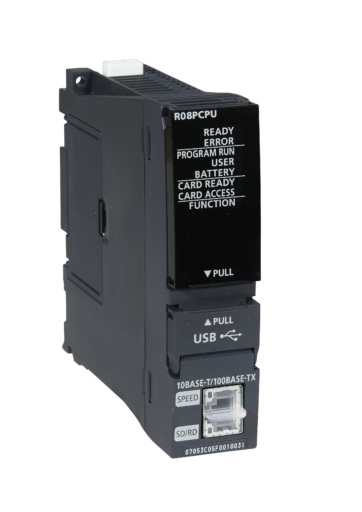

    285496-R08PCPU

    285496 - R08PCPU

    Material number 285496

    PLC iQ-R Series Process CPU, Program capacity 80K steps

    Request for Quote Add to List
    FA-MOD PLC: CPU MODULE
    Series MELSEC IQ-R SERIES
    Type PROCESS CPU
    Program Memory 80K
    Program Memory Unit STEPS
    Local I/O Points 4096
    Local + Remote I/O Points 4096
    Cycle Time LD (ns) 0,98
    Cycle Time MOV (ns) 1,96
    USB 1
    Ethernet Port 1
    Buffer Battery YES
    Int. Current Consumption (A) 0,76
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 110
    Weight (kg) 0,2
    Width (mm) 27,8
    Height (mm) 98 (106)
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 45
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 3
    Wood (g) 0
    Other paper (g) 26
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 12060-00-3, 71868-10-5, 110-71-4, 7439-92-1, 80-43-3
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
