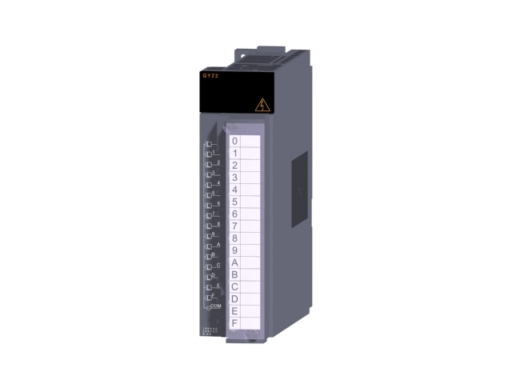

    136402-QY22

    136402 - QY22

    Material number 136402

    PLC Q Series Output module; 100-240V AC; 0.6A, 16 triac outputs; screw terminals

    Request for Quote Add to List
    FA-MOD PLC: DIGITAL OUTPUT MODULE
    Series MELSEC-Q SERIES
    Type TRIAC OUTPUT
    Occupied I/O Points on PLC 16
    Integrated Digital Outputs 16
    Output Type TRIAC
    Rated Load Voltage (VAC) 100-240
    Wiring SCREW
    Int. Current Consumption (A) 0,25
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 90
    Weight (kg) 0,254
    Width (mm) 27,4
    Height (mm) 98
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 55
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 17
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 71868-10-5, 19438-60-9, 7439-92-1, 75980-60-8, 85-42-7
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
