Material number 147286

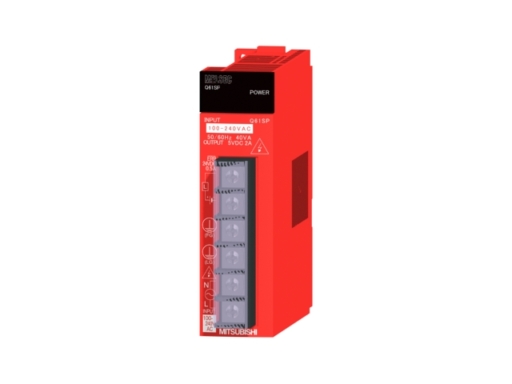

PLC Q Series Power supply 100-240 V AC input, 5 V DC 2 A output, for Q3xSB
| Series | MELSEC-Q SERIES |
|---|---|
| Type | SLIM TYPE POWER SUPPLY |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Max Input Apparent Power (VA) | 40 |
| Output Current 5V (A) | 2 |
| Depth (mm) | 104 |
|---|---|
| Weight (kg) | 0,213 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 55 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 2 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
