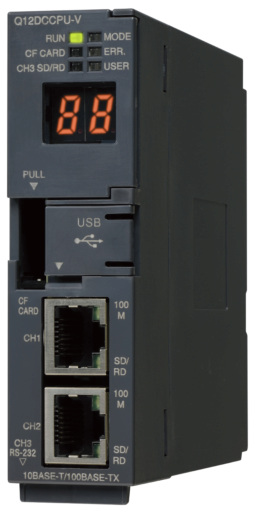

Material number 221925
PLC Q Series CPU module, C/C++ CPU; 128 MB program capacity; VxWorks6.4
| Series | MELSEC-Q SERIES |
|---|---|
| Type | C CONTROLLER CPU |
| Program Memory | 128 |
| Program Memory Unit | MB |
| Local I/O Points | 4096 |
| Local + Remote I/O Points | 4096 |
| USB | 1 |
| Ethernet Port | 2 |
| RS-232 | 1 |
| Buffer Battery | YES |
| Int. Current Consumption (A) | 0,93 |
| Depth (mm) | 115 |
|---|---|
| Weight (kg) | 0,24 |
| Width (mm) | 27,4 |
| Height (mm) | 98 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 55 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 23 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 80-05-7, 110-71-4, 71868-10-5, 7439-92-1, 96-13-9, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
