Material number 481338

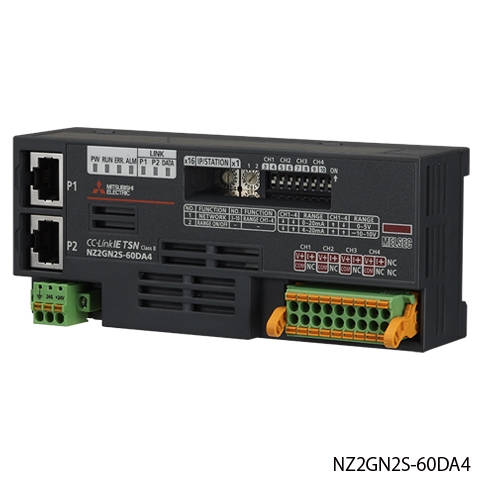

PLC Remote Analog Output Module; CC-Link IE TSN; 4 ch voltage/current; spring cl
| Series | CC-LINK IE TSN |
|---|---|
| Type | REMOTE ANALOG OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Analogue Outputs | 4 |
| Output Voltage Range (V) | -10-10; 0-10; 0-5; 1-5 |
| Output Current Range (mA) | 0-20; 4-20 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,25 |
| Depth (mm) | 45,5 |
|---|---|
| Weight (kg) | 0,15 |
| Width (mm) | 130 |
| Height (mm) | 54,5 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 110 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 71868-10-5 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
