Material number 307261

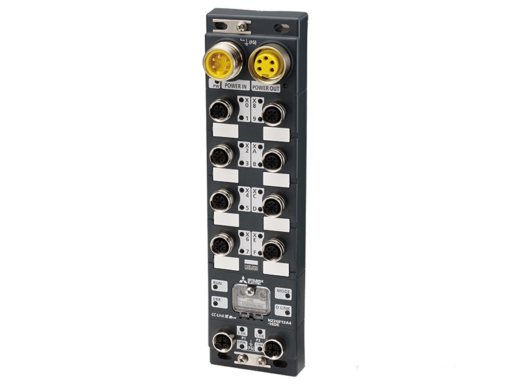

PLC CC-Link IE Field I/O module;16 inputs; IP67
| Series | CC-LINK IE FIELD NETWORK |
|---|---|
| Type | REMOTE DC INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,22 |
| Depth (mm) | 38,5 |
|---|---|
| Weight (kg) | 0,71 |
| Width (mm) | 60 |
| Height (mm) | 235 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 78 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 12 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
