    269673-L60AD2DA2

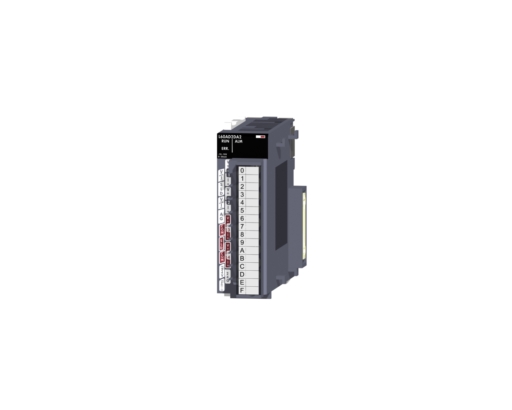

    269673 - L60AD2DA2

    Material number 269673

    SPS,L-Serie Analogue-Combi Module;2 In/2 Outputs;-10-10VDC;0-20mADC;1/12000 Res

    Request for Quote Add to List
    FA-MOD PLC: ANALOGUE I/O MODULE
    Series MELSEC-L SERIES
    Type ANALOG I/O COMBINED MODULE
    Power Supply (V) 24
    Current Type DC
    Occupied I/O Points on PLC 16
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 2
    Input Voltage Range (V) -10-10; 0-10; 0-5; 1-5
    Input Current Range (mA) 0-20; 4-20
    Output Voltage Range (V) -10-10; 0-5; 1-5
    Output Current Range (mA) 0-20; 4-20
    Wiring SCREW
    Int. Current Consumption (A) 0,17
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 117
    Weight (kg) 0,22
    Width (mm) 28,5
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 43
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 23
    Wood (g) 0
    Other paper (g) 1
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 108-78-1, 7439-92-1, 80-05-7, 119313-12-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
