Material number 297442

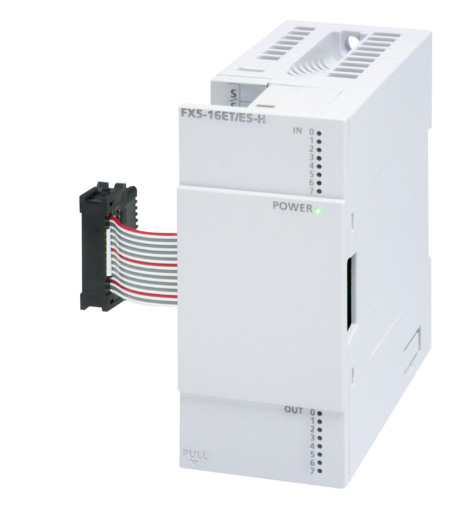

FX5;High-speed I/O Module;2x 200kHz Counter;2x 200kpps Pulse Outputs;sink
| Series | MELSEC IQ-F SERIES |
|---|---|
| Type | HIGH-SPEED PULSE I/O MODULE |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Digital Inputs | 8 |
| Integrated Digital Outputs | 8 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Depth (mm) | 83 |
|---|---|
| Weight (kg) | 0,2 |
| Width (mm) | 40 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 39 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0,5 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 12060-00-3, 71868-10-5 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
