Material number 221862

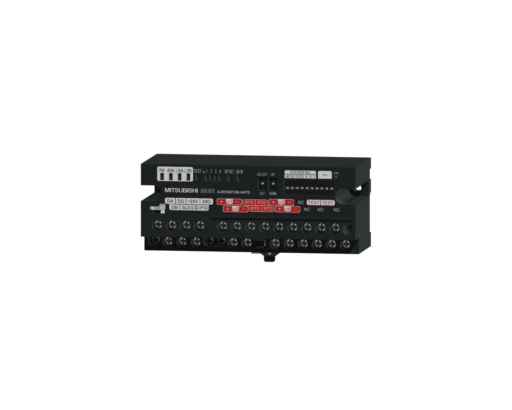

PLC CC-Link compact I/O module; 4 analog inputs; Pt100/Ni100; 16 bit; 3-wire
| Series | CC-LINK |
|---|---|
| Type | TEMPERATURE INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Analogue Inputs | 4 |
| Input Type | RTD |
| Applicable RTD Type | JPT100, NI100, PT100 |
| Int. Current Consumption (A) | 0,14 |
| Depth (mm) | 54 |
|---|---|
| Weight (kg) | 0,25 |
| Width (mm) | 122 |
| Height (mm) | 50 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 80 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 5 |
| Wood (g) | 0 |
| Other paper (g) | 1 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 80-05-7, 7439-92-1, 13560-89-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
