Material number 150380

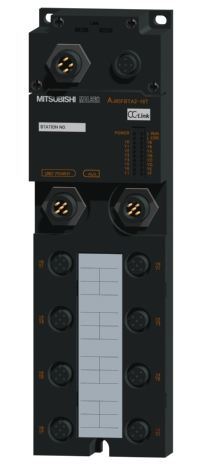

PLC CC-Link compact I/O module; 16 transistor outputs sink; 12/24 VDC 0,5A; IP67
| Series | CC-LINK |
|---|---|
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | N/A |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VAC) | N/A |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,05 |
| Depth (mm) | 48 |
|---|---|
| Weight (kg) | 0,4 |
| Width (mm) | 60 |
| Height (mm) | 200 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
