Material number 293268

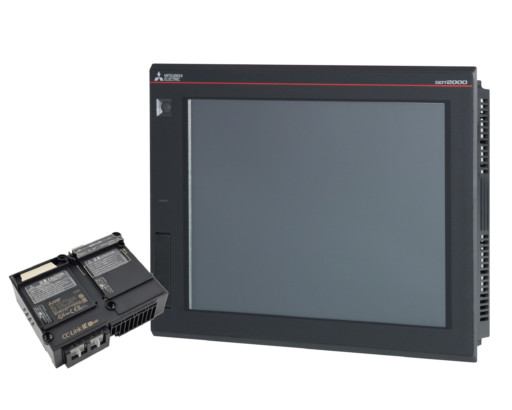

GOT2000;Bundle with GT2712-STBD and CC-Link IE Field unit GT15-J71GF13-T2
| Series | GOT2000 SERIES |
|---|---|
| Type | GT27 MODEL |
| Display | TFT |
| Display Colour | 65536 |
| Display Size (Inch) | 12,1 |
| Resolution (Pixels) | 800X600 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Protection Class | IP67F |
| Internal Memory Capacity (MB) | 256 |
| Memory Card Slot | SD |
| USB | 3 |
| Ethernet Port | 1 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| Network Options | MODBUS,CCLINK,M'NET,ETH,BUS |
| Slot for Optional Cards | YES |
| Depth (mm) | 52 |
|---|---|
| Weight (kg) | 2,4 |
| Width (mm) | 316 |
| Height (mm) | 246 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 900 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 28,9 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 872-50-4, 80-05-7, 12060-00-3, 7439-92-1, 1317-36-8, 1303-86-2, 127-19-5, 1120-71-4, 110-71-4 |
| Dangerous Goods Class | NO |
| WEEE | B2B |
