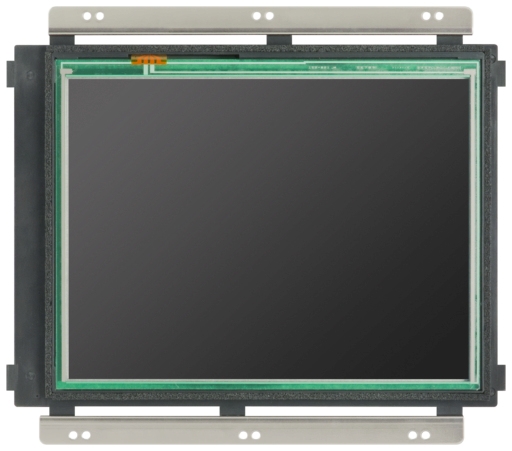

Material number 296310
GOT2000;12,1"TFT;DC;SVGA;65k col;RS-422/485;RS-232;USB;Eth;SD;OpenFrame+Sheet
| Series | GOT2000 SERIES |
|---|---|
| Type | GT25 OPEN FRAME MODEL |
| Display | TFT |
| Display Colour | 65536 |
| Display Size (Inch) | 12,1 |
| Resolution (Pixels) | 800X600 |
| Power Supply (V) | 24 |
| Current Type | DC |
| Protection Class | IP67F |
| Internal Memory Capacity (MB) | 32 |
| Memory Card Slot | SD |
| USB | 2 |
| Ethernet Port | 1 |
| RS-232 | 1 |
| RS-422/485 | 1 |
| Network Options | MODBUS, ETHERNET |
| Slot for Optional Cards | YES |
| Depth (mm) | 54 |
|---|---|
| Weight (kg) | 2,4 |
| Width (mm) | 311 |
| Height (mm) | 237 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 1050 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 37,25 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
