    587832-GT2512-WXTSD

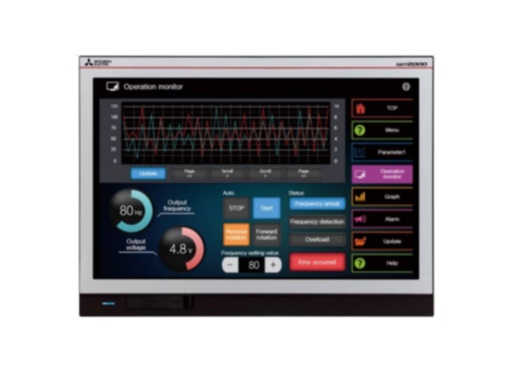

    587832 - GT2512-WXTSD

    Material number 587832

    GOT2000;12,1"wideTFT;DC;WXGA;65k colors;RS-422/485;RS-232;USB;Eth;SD;Silver

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series GOT2000 SERIES
    Type GT25 WIDE MODEL
    Display TFT
    Display Colour 65536
    Display Size (Inch) 12,1
    Resolution (Pixels) 1280X800
    Power Supply (V) 24
    Current Type DC
    Protection Class IP67F
    Internal Memory Capacity (MB) 32
    Memory Card Slot SD
    USB 2
    Ethernet Port 2
    RS-232 1
    RS-422/485 1
    Network Options MODBUS, ETHERNET
    Slot for Optional Cards YES
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 48
    Weight (kg) 1,7
    Width (mm) 299
    Height (mm) 219
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 620
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 25,7
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 110-71-4, 1303-86-2, 1317-36-8, 3147-75-9, 3896-11-5, 71868-10-5, 75980-60-8, 96-13-9, 1120-71-4, 7439-92-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
