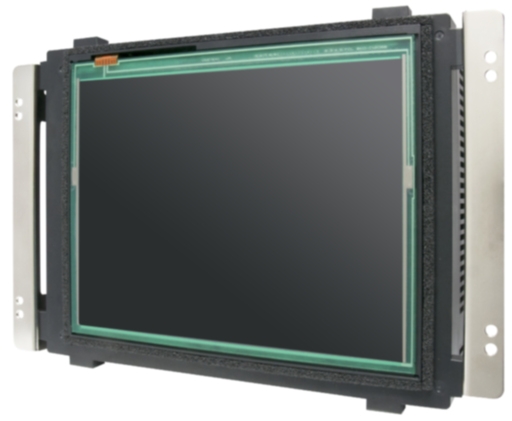

    296113-GT2508F-VTNA

    296113 - GT2508F-VTNA

    Material number 296113

    GOT2000;8,4"TFT;AC;VGA;65k colors;RS-422/485;RS-232;USB;Eth;SD;Open Frame

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series GOT2000 SERIES
    Type GT25 OPEN FRAME MODEL
    Display TFT
    Display Colour 65536
    Display Size (Inch) 8,4
    Resolution (Pixels) 640X480
    Power Supply (V) 100-240
    Current Type AC
    Protection Class IP67F
    Internal Memory Capacity (MB) 32
    Memory Card Slot SD
    USB 2
    Ethernet Port 1
    RS-232 1
    RS-422/485 1
    Network Options MODBUS, ETHERNET
    Slot for Optional Cards YES
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 54
    Weight (kg) 1,5
    Width (mm) 236
    Height (mm) 185
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals NON-COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 470
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 14,7
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 108-78-1, 110-71-4, 119313-12-1, 1303-86-2, 13840-56-7, 25973-55-1, 3147-75-9, 3896-11-5, 693-98-1, 71868-10-5, 96-13-9, 1120-71-4, 7439-92-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
