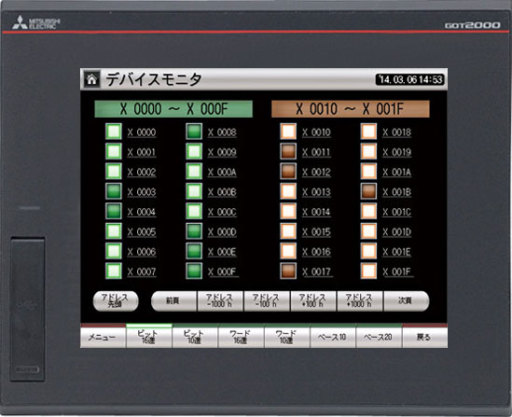

    276819-GT2508-VTBA

    276819 - GT2508-VTBA

    Material number 276819

    GOT2000;8,4"TFT;AC;VGA;65k colors;RS-422/485;RS-232;USB;Eth;SD;Black

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series GOT2000 SERIES
    Type GT25 MODEL
    Display TFT
    Display Colour 65536
    Display Size (Inch) 8,4
    Resolution (Pixels) 640X480
    Power Supply (V) 100-240
    Current Type AC
    Protection Class IP67F
    Internal Memory Capacity (MB) 80
    Memory Card Slot SD
    USB 3
    Ethernet Port 1
    RS-232 1
    RS-422/485 1
    Network Options CCLINK, PROFIBUS, ETHERNET, MELSECNET, MODBUS
    Slot for Optional Cards YES
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 52
    Weight (kg) 1,5
    Width (mm) 241
    Height (mm) 194
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 500
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 9
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
