Explore Mitsubishi Electric Products

    323265-GT2505-VTBD

    323265 - GT2505-VTBD

    Material number 323265

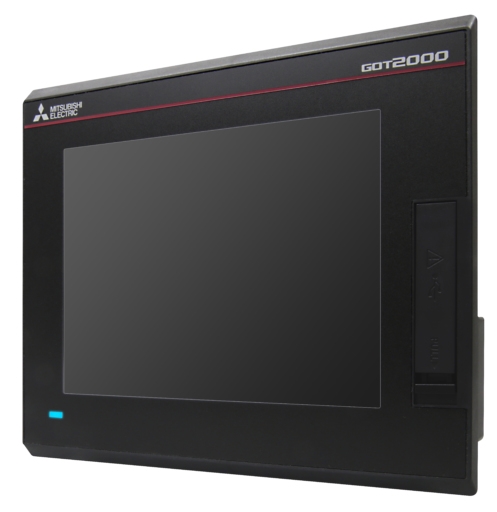

    GOT2000;5,7"TFT;DC;VGA;65k colors;RS-422/485;RS-232;USB;Eth;SD;Black

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series GOT2000 SERIES
    Type GT25 MODEL
    Display TFT
    Display Colour 65536
    Display Size (Inch) 5,7
    Resolution (Pixels) 640X480
    Power Supply (V) 24
    Current Type DC
    Protection Class IP67
    Internal Memory Capacity (MB) 32
    Memory Card Slot SD
    USB 2
    Ethernet Port 1
    RS-232 1
    RS-422/485 1
    Network Options ETHERNET, CCLINK, MODBUS
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 53,5
    Weight (kg) 0,6
    Width (mm) 164
    Height (mm) 139
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 206
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 6
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 10043-35-3, 119313-12-1, 2451-62-9, 25155-23-1, 25973-55-1, 3147-75-9, 3896-11-5, 71868-10-5, 96-13-9, 79-94-7, 7439-92-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
