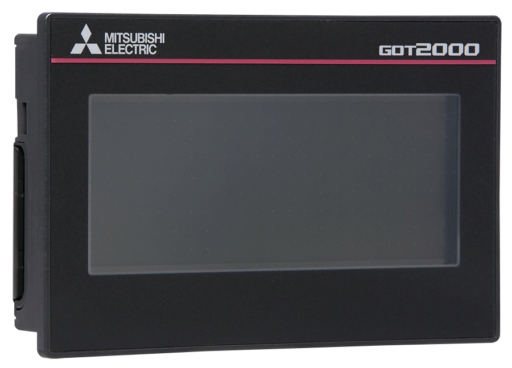

    288038-GT2103-PMBDS2

    288038 - GT2103-PMBDS2

    Material number 288038

    GOT2000;3,8"TFT;DC;320x128;32 Greyscales;2xRS-232;USB;Black

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series GOT2000 SERIES
    Type GT21 MODEL
    Display TFT
    Display Colour MONOCHROME
    Display Size (Inch) 3,8
    Resolution (Pixels) 320X128
    Power Supply (V) 24
    Current Type DC
    Protection Class IP67F
    Internal Memory Capacity (MB) 3
    Memory Card Slot SD
    USB 1
    RS-232 2
    Network Options MODBUS
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 32
    Weight (kg) 0,2
    Width (mm) 113
    Height (mm) 74
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals ABS,BV,DNV,LR,NK,RINA
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 118
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 2
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 119313-12-1, 12626-81-2, 71868-10-5, 7439-92-1, 3147-75-9, 25973-55-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
