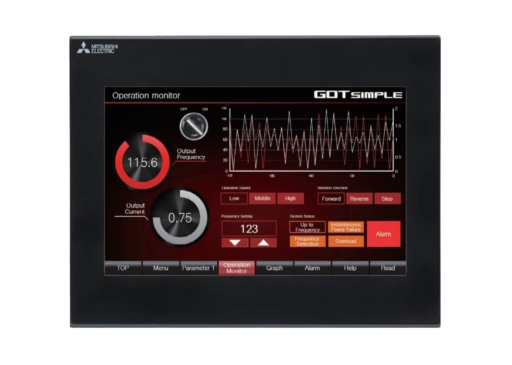

    584884-GS2110-WTBD-N

    584884 - GS2110-WTBD-N

    Material number 584884

    GOT Simple;10"wideTFT;DC;WVGA;65k colors;RS-422/485;RS-232;USB;Eth;SD;Black

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series GOT SIMPLE SERIES
    Type GS21 MODEL
    Display TFT
    Display Colour 65536
    Display Size (Inch) 10
    Resolution (Pixels) 800X480
    Power Supply (V) 24
    Current Type DC
    Protection Class IP65F
    Internal Memory Capacity (MB) 15
    Memory Card Slot SD
    USB 1
    Ethernet Port 1
    RS-232 1
    RS-422/485 1
    Network Options MODBUS, CCLINK, ETHERNET
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 56
    Weight (kg) 1,3
    Width (mm) 272
    Height (mm) 214
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals NON-COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0,0
    Others (g) 0,0
    Styrofoam (g) 0,0
    Cardboard (g) 509,32
    Steel (g) 0,0
    Glass (g) 0,0
    Other plastic (g) 0,5
    Wood (g) 0,0
    Other paper (g) 8,9
    ENVIRONMENTAL
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
