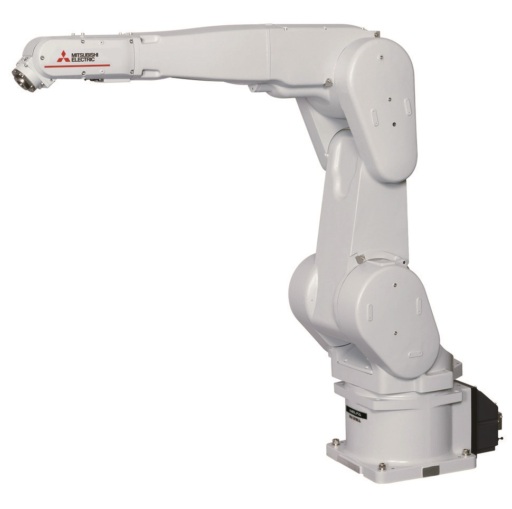

    314062-RV-7FRLLM-R

    314062 - RV-7FRLLM-R

    Material number 314062

    Industrial Robot RV-7FR-R 6-axis; +/- 0.06mm; 7kg; 1503mm; IP67; incl. CR800

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 167,5
    Series RV-FR SERIES
    Cycle Time (s) 0,63
    Repeatability (mm) 0,06
    Operating Range J1 (deg) 380
    Type VERTICAL
    Payload (kg) 7
    Environment specification OIL MIST
    Controller Type CR800-R
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP67
    Power Consumption (VA) 3000
    Max. Reach Radius (mm) 1503
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 15300
    Operating Range J6 (deg) 720
    Power Supply (VAC) 1PHASE 230V, 3PHASE 200-230V
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 1278
    Weight (kg) 130
    Width (mm) 347
    Height (mm) 1152
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
