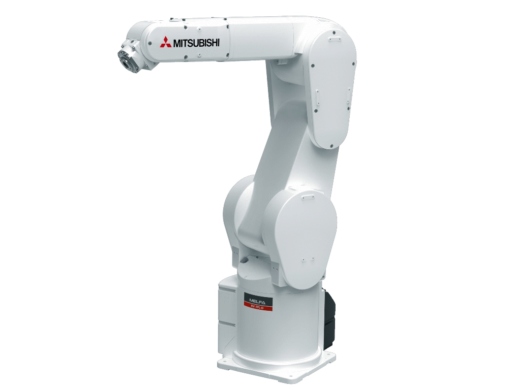

    255610-RV-7FL-1Q1-S15

    255610 - RV-7FL-1Q1-S15

    Material number 255610

    Industrial Robot RV-7F-Q 6-axis; +/- 0,02mm; 7kg; 908mm; IP40; incl. CR751

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 162
    Series RV-F SERIES
    Cycle Time (s) 0,35
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 7
    Environment specification STANDARD
    Controller Type CR751-Q
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP40
    Power Consumption (VA) 2000
    Max. Reach Radius (mm) 907,7
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 10977
    Power Supply 3 Phase (VAC) 180-253
    Operating Range J6 (deg) 720
    Power Supply (VAC) 207-253
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 762,6
    Weight (kg) 67
    Width (mm) 278
    Height (mm) 939,4
    CONFORMITY
    CE COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 500
    Styrofoam (g) 0
    Cardboard (g) 17600
    Steel (g) 70
    Glass (g) 0
    Other plastic (g) 1092,22
    Wood (g) 0
    Other paper (g) 120
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 1317-36-8, 7439-92-1, 556-67-2, 1303-86-2, 117-81-7, 110-71-4
    RoHS Compliance NOT IN SCOPE
    Dangerous Goods Class 9
    WEEE B2B
