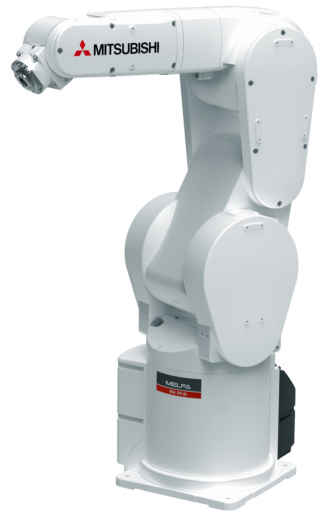

    255273-RV-7F-D1-S15

    255273 - RV-7F-D1-S15

    Material number 255273

    Industrial Robot RV-7F-D 6-axis; +/- 0,02mm; 7kg; 713mm; IP40; incl. CR750

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 156
    Series RV-F SERIES
    Cycle Time (s) 0,32
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 7
    Environment specification STANDARD
    Controller Type CR750-D
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP40
    Power Consumption (VA) 2000
    Max. Reach Radius (mm) 713,4
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 11064
    Power Supply 3 Phase (VAC) 180-253
    Operating Range J6 (deg) 720
    Power Supply (VAC) 207-253
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 662,6
    Weight (kg) 65
    Width (mm) 278
    Height (mm) 844,4
    CONFORMITY
    CE COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class 9
    WEEE B2B
