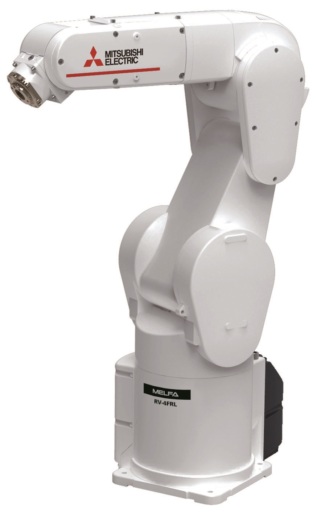

    314056-RV-4FRLM-R

    314056 - RV-4FRLM-R

    Material number 314056

    Industrial Robot RV-4FR-R 6-axis; +/- 0,02mm; 4kg; 649mm; IP67; incl. CR800

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 164
    Series RV-FR SERIES
    Cycle Time (s) 0,36
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 4
    Environment specification OIL MIST
    Controller Type CR800-R
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP67
    Power Consumption (VA) 1000
    Max. Reach Radius (mm) 649
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 9048
    Operating Range J6 (deg) 720
    Power Supply (VAC) 1PHASE 200-230V
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 603
    Weight (kg) 41
    Width (mm) 241
    Height (mm) 764,9
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
