    286457-RV-4FM-1Q1-SE1502

    286457 - RV-4FM-1Q1-SE1502

    Material number 286457

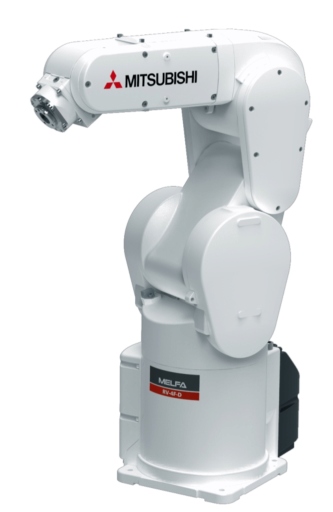

    Industrial Robot RV-4F-Q 6-axis; +/- 0,02mm; 4kg; 515mm; Food Spez.;CR751

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 161
    Series RV-F SERIES
    Cycle Time (s) 0,36
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 4
    Environment specification OIL MIST
    Controller Type CR751-Q
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP67
    Power Consumption (VA) 1000
    Max. Reach Radius (mm) 515
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 9027
    Operating Range J6 (deg) 720
    Power Supply (VAC) 180-253
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 543
    Weight (kg) 39
    Width (mm) 241
    Height (mm) 690
    CONFORMITY
    CE COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 500
    Styrofoam (g) 0
    Cardboard (g) 17600
    Steel (g) 70
    Glass (g) 0
    Other plastic (g) 1350
    Wood (g) 26500
    Other paper (g) 120
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 1317-36-8, 7439-92-1, 556-67-2, 1303-86-2, 110-71-4
    Dangerous Goods Class 9
    WEEE B2B
