Material number 286441

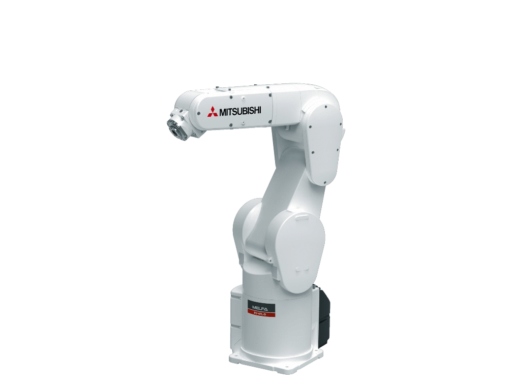

Industrial Robot RV-4F-D 6-axis; +/- 0,02mm; 4kg; 649mm; Food Spez.;CR750
| Operating Range J3 (deg) | 164 |
|---|---|
| Series | RV-F SERIES |
| Cycle Time (s) | 0,36 |
| Repeatability (mm) | 0,02 |
| Operating Range J1 (deg) | 480 |
| Type | VERTICAL |
| Payload (kg) | 4 |
| Environment specification | OIL MIST |
| Controller Type | CR750-D |
| Installation Method | FLOOR, CEILING, WALL |
| Protection Class | IP67 |
| Power Consumption (VA) | 1000 |
| Max. Reach Radius (mm) | 649 |
| Operating Range J4 (deg) | 400 |
| Operating Range J2 (deg) | 240 |
| Speed (mm/s) | 9048 |
| Operating Range J6 (deg) | 720 |
| Power Supply (VAC) | 180-253 |
| Operating Range J5 (deg) | 240 |
| Depth (mm) | 603 |
|---|---|
| Weight (kg) | 41 |
| Width (mm) | 241 |
| Height (mm) | 764,9 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 500 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 17600 |
| Steel (g) | 70 |
| Glass (g) | 0 |
| Other plastic (g) | 1092,22 |
| Wood (g) | 0 |
| Other paper (g) | 120 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 110-71-4, 7439-92-1, 556-67-2, 117-81-7 |
| RoHS Compliance | NOT IN SCOPE |
| Dangerous Goods Class | 9 |
| WEEE | B2B |
