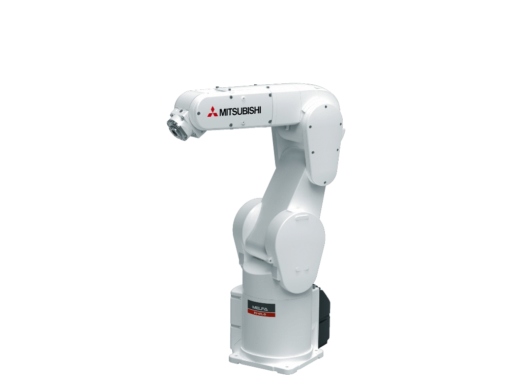

    286456-RV-4FLM-1D1-SE1502

    286456 - RV-4FLM-1D1-SE1502

    Material number 286456

    Industrial Robot RV-4F-D 6-axis; +/- 0,02mm; 4kg; 649mm; Food Spez.;CR751

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 164
    Series RV-F SERIES
    Cycle Time (s) 0,36
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 4
    Environment specification OIL MIST
    Controller Type CR751-D
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP67
    Power Consumption (VA) 1000
    Max. Reach Radius (mm) 649
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 9048
    Operating Range J6 (deg) 720
    Power Supply (VAC) 180-253
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 603
    Weight (kg) 41
    Width (mm) 241
    Height (mm) 764,9
    CONFORMITY
    CE COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class 9
    WEEE B2B
