    314030-RV-2FRB-R-S25

    314030 - RV-2FRB-R-S25

    Material number 314030

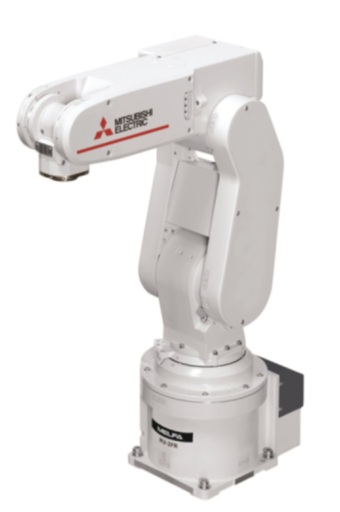

    Industrial Robot RV-2FR-R 6-axis; +/- 0,02mm; 2kg; 504mm; IP30; incl. CR800

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 160
    Series RV-FR SERIES
    Cycle Time (s) 0,6
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 2
    Environment specification STANDARD
    Controller Type CR800-R
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP30
    Power Consumption (VA) 500
    Max. Reach Radius (mm) 504
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 4955
    Operating Range J6 (deg) 720
    Power Supply (VAC) 1PHASE 200-230V
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 525
    Weight (kg) 19
    Width (mm) 160
    Height (mm) 623
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
