    255214-RV-2F-Q1-S16

    255214 - RV-2F-Q1-S16

    Material number 255214

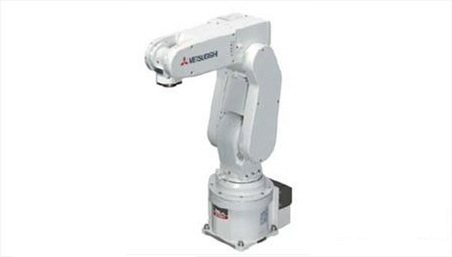

    Industrial Robot RV-2F-Q 6-axis; +/- 0,02mm; 2kg;504mm;IP30; incl.CR750;no brake

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Operating Range J3 (deg) 160
    Series RV-F SERIES
    Cycle Time (s) 0,6
    Repeatability (mm) 0,02
    Operating Range J1 (deg) 480
    Type VERTICAL
    Payload (kg) 2
    Environment specification STANDARD
    Controller Type CR750-Q
    Installation Method FLOOR, CEILING, WALL
    Protection Class IP30
    Power Consumption (VA) 500
    Max. Reach Radius (mm) 504
    Operating Range J4 (deg) 400
    Operating Range J2 (deg) 240
    Speed (mm/s) 4955
    Operating Range J6 (deg) 720
    Power Supply (VAC) 180-253
    Operating Range J5 (deg) 240
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 495
    Weight (kg) 19
    Width (mm) 185
    Height (mm) 623
    CONFORMITY
    CE COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 300
    Styrofoam (g) 0
    Cardboard (g) 7900
    Steel (g) 10
    Glass (g) 0
    Other plastic (g) 42,22
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 1303-86-2, 7439-92-1, 556-67-2, 1317-36-8, 117-81-7, 110-71-4
    RoHS Compliance NOT IN SCOPE
    Dangerous Goods Class 9
    WEEE B2B
