Material number 313100

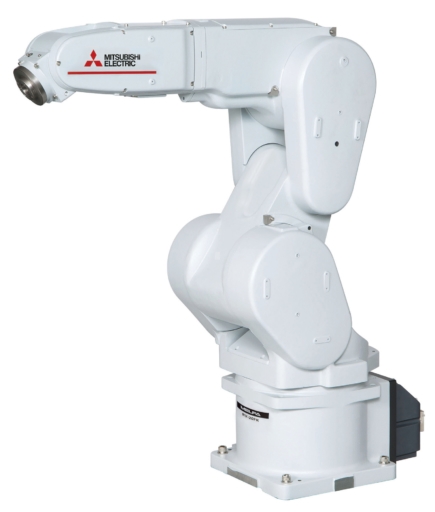

Industrial Robot RV-20FR-D 6-axis; +/- 0.05mm; 20kg; 1094mm; IP40; incl. CR800
| Operating Range J3 (deg) | 167,5 |
|---|---|
| Series | RV-FR SERIES |
| Cycle Time (s) | 0,7 |
| Repeatability (mm) | 0,05 |
| Operating Range J1 (deg) | 480 |
| Type | VERTICAL |
| Payload (kg) | 20 |
| Environment specification | STANDARD |
| Controller Type | CR800-D |
| Installation Method | FLOOR, CEILING, WALL |
| Protection Class | IP40 |
| Power Consumption (VA) | 3000 |
| Max. Reach Radius (mm) | 1094 |
| Operating Range J4 (deg) | 400 |
| Operating Range J2 (deg) | 240 |
| Speed (mm/s) | 4200 |
| Operating Range J6 (deg) | 720 |
| Power Supply (VAC) | 1PHASE 230V, 3PHASE 200-230V |
| Operating Range J5 (deg) | 240 |
| Depth (mm) | 1088 |
|---|---|
| Weight (kg) | 120 |
| Width (mm) | 347 |
| Height (mm) | 1003,8 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 500 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 26926 |
| Steel (g) | 70 |
| Glass (g) | 0 |
| Other plastic (g) | 1302 |
| Wood (g) | 36900 |
| Other paper (g) | 120 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 119313-12-1, 12060-00-3, 110-71-4, 127-19-5, 1303-86-2, 13560-89-9, 540-97-6, 541-02-6, 556-67-2, 71868-10-5, 7439-92-1, 79-94-7, 80-05-7, 80-43-3, 85-42-7, 119344-86-4 |
| RoHS Compliance | NOT IN SCOPE |
| Dangerous Goods Class | 9 |
| WEEE | B2B |
| Dangerous Goods Identifier | UN3091 |
