Material number 286452

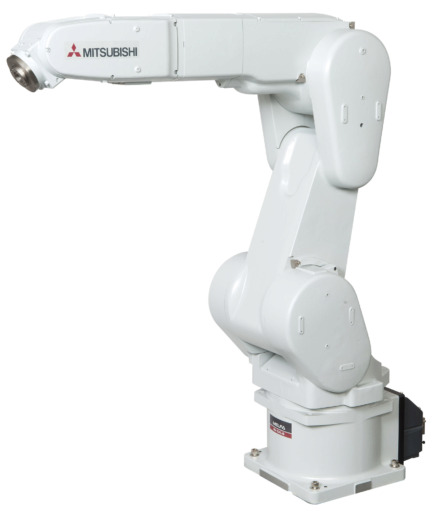

Industrial Robot RV-13F-Q 6-axis; +/- 0,05mm; 13kg; 1388mm; Food Spez.;CR750
| Operating Range J3 (deg) | 167,5 |
|---|---|
| Series | RV-F SERIES |
| Cycle Time (s) | 0,68 |
| Repeatability (mm) | 0,05 |
| Operating Range J1 (deg) | 480 |
| Type | VERTICAL |
| Payload (kg) | 13 |
| Environment specification | OIL MIST |
| Controller Type | CR750-Q |
| Installation Method | FLOOR, CEILING, WALL |
| Protection Class | IP67 |
| Power Consumption (VA) | 3000 |
| Max. Reach Radius (mm) | 1388 |
| Operating Range J4 (deg) | 400 |
| Operating Range J2 (deg) | 240 |
| Speed (mm/s) | 9700 |
| Power Supply 3 Phase (VAC) | 180-253 |
| Operating Range J6 (deg) | 720 |
| Power Supply (VAC) | 207-253 |
| Operating Range J5 (deg) | 240 |
| Depth (mm) | 1028 |
|---|---|
| Weight (kg) | 130 |
| Width (mm) | 347 |
| Height (mm) | 1152 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 500 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 26900 |
| Steel (g) | 70 |
| Glass (g) | 0 |
| Other plastic (g) | 1080 |
| Wood (g) | 0 |
| Other paper (g) | 120 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | 9 |
| WEEE | B2B |
