Material number 500838

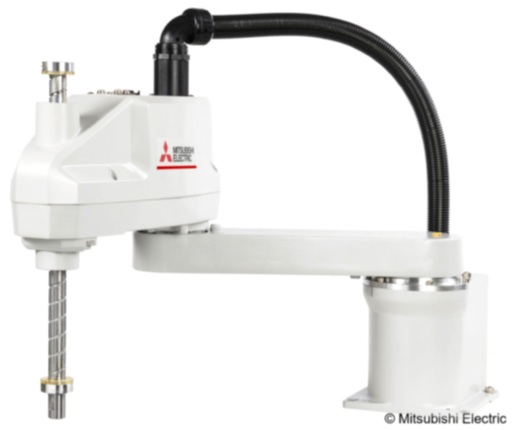

Industrial Robot; RH-6CRH-D; 4-axis; +/- 0,02mm; 6kg; 600/200mm; incl. CR800
| Series | RH-CRH SERIES |
|---|---|
| Payload (kg) | 6 |
| Cycle Time (s) | 0,41 |
| Repeatability (mm) | 0,02 |
| Operating Range J1 (deg) | 264 |
| Controller Type | CR800-CHD |
| Installation Method | FLOOR |
| Protection Class | IP20 |
| Power Consumption (VA) | 500 |
| Max. Reach Radius (mm) | 600 |
| Operating Range J4 (deg) | 720 |
| Operating Range J2 (deg) | 300 |
| Type | SCARA |
| Z Axis Stroke (mm) | 200 |
| Environment specification | STANDARD |
| Speed (mm/s) | 7800 |
| Power Supply (VAC) | 1PHASE 200-230V |
| Depth (mm) | 788 |
|---|---|
| Weight (kg) | 17 |
| Width (mm) | 169 |
| Height (mm) | 559 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 20 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 9390 |
| Steel (g) | 20 |
| Glass (g) | 0 |
| Other plastic (g) | 451,17 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 119313-12-1, 120-12-7, 12060-00-3, 127-19-5, 1303-86-2, 13560-89-9, 540-97-6, 541-02-6, 556-67-2, 71868-10-5, 79-94-7, 80-05-7, 80-43-3, 110-80-5, 7439-92-1 |
| Dangerous Goods Class | 9 |
| WEEE | B2B |
| Dangerous Goods Identifier | UN3091 |
