    314028-RH-3FRHR3515-R-S25

    314028 - RH-3FRHR3515-R-S25

    Material number 314028

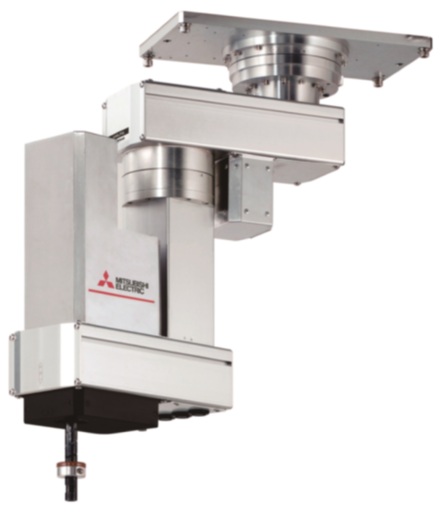

    Industrial Robot RH-3FRHR-R 4-axis; +/- 0,01mm; 3kg; 350/150mm; incl. CR800

    Request for Quote Add to List
    FA-ROBOT: ROBOTSYSTEM
    Series RH-FRHR SERIES
    Payload (kg) 3
    Cycle Time (s) 0,32
    Repeatability (mm) 0,01
    Operating Range J1 (deg) 450
    Controller Type CR800-R
    Installation Method CEILING
    Protection Class IP20
    Power Consumption (VA) 1000
    Max. Reach Radius (mm) 350
    Operating Range J4 (deg) 720
    Operating Range J2 (deg) 450
    Type SCARA
    Z Axis Stroke (mm) 150
    Environment specification STANDARD
    Speed (mm/s) 6267
    Power Supply (VAC) 1PHASE 200-230V
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 565
    Weight (kg) 29
    Width (mm) 174
    Height (mm) 773
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UKCA COMPLIANT
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    Dangerous Goods Class 9
    WEEE B2B
    Dangerous Goods Identifier UN3091
