Material number 305138

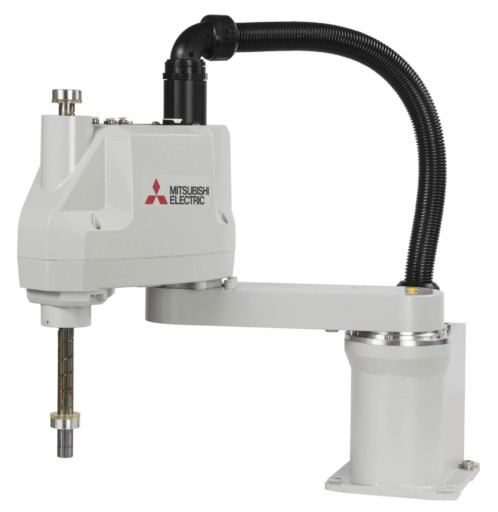

Industrial Robot RH-3CH-D 4-axis; +/- 0,01mm; 3kg; 400/180mm; incl. CR751
| Cycle Time (s) | 0,44 |
|---|---|
| Repeatability (mm) | 0,01 |
| Operating Range J1 (deg) | 264 |
| Controller Type | CR751-D |
| Installation Method | FLOOR |
| Protection Class | IP20 |
| Power Consumption (VA) | 500 |
| Max. Reach Radius (mm) | 400 |
| Operating Range J4 (deg) | 720 |
| Operating Range J2 (deg) | 282 |
| Series | RH-CH |
| Type | SCARA |
| Payload (kg) | 3 |
| Z Axis Stroke (mm) | 180 |
| Environment specification | STANDARD |
| Speed (mm/s) | 7200 |
| Inertia | 4 |
| Power Supply (VAC) | 200-253 |
| Depth (mm) | 580 |
|---|---|
| Weight (kg) | 14 |
| Width (mm) | 130 |
| Height (mm) | 511,5 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 20 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 9410 |
| Steel (g) | 20 |
| Glass (g) | 0 |
| Other plastic (g) | 451,17 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 117-81-7, 110-71-4, 556-67-2, 7439-92-1 |
| RoHS Compliance | NOT IN SCOPE |
| Dangerous Goods Class | NO |
| WEEE | B2B |
