Material number 732981

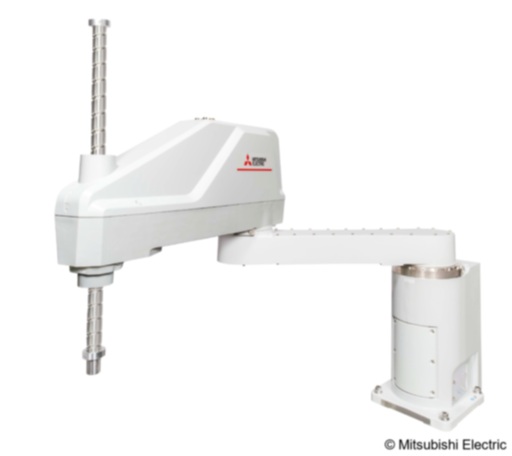

Industrial Robot; RH-20CRH-D; 4-axis; +/- 0,025mm; 20kg; 1000/420mm; incl. CR800
| Repeatability (mm) | 0,025 |
|---|---|
| Operating Range J1 (deg) | 340 |
| Series | RH-CRH SERIES |
| Payload (kg) | 20 |
| Controller Type | CR800-C2HD |
| Installation Method | FLOOR |
| Protection Class | IP20 |
| Power Consumption (VA) | 1500 |
| Max. Reach Radius (mm) | 1000 |
| Operating Range J4 (deg) | 720 |
| Operating Range J2 (deg) | 306 |
| Type | SCARA |
| Z Axis Stroke (mm) | 420 |
| Environment specification | STANDARD |
| Power Supply (VAC) | 1PHASE 200-230V |
| Depth (mm) | 1220 |
|---|---|
| Weight (kg) | 57 |
| Width (mm) | 242 |
| Height (mm) | 1053,5 |
| CE | COMPLIANT |
|---|
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 602 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 14505 |
| Steel (g) | 369 |
| Glass (g) | 0 |
| Other plastic (g) | 671,2 |
| Wood (g) | 15300 |
| Other paper (g) | 0 |
| Dangerous Goods Class | 9 |
|---|
