Material number 288009

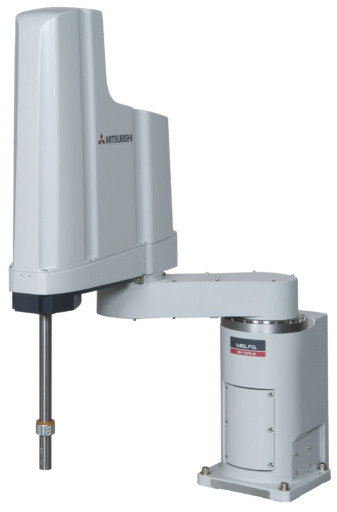

Industrial Robot RH-12FH-Q 4-axis; +/- 0,012mm; 12kg;550/350mm; Food spec; CR751
| Cycle Time (s) | 0,3 |
|---|---|
| Repeatability (mm) | 0,012 |
| Operating Range J1 (deg) | 340 |
| Controller Type | CR751-Q |
| Installation Method | FLOOR |
| Protection Class | IP65 |
| Power Consumption (VA) | 1500 |
| Max. Reach Radius (mm) | 550 |
| Operating Range J4 (deg) | 720 |
| Operating Range J2 (deg) | 290 |
| Series | RH-F SERIES |
| Type | SCARA |
| Payload (kg) | 12 |
| Z Axis Stroke (mm) | 350 |
| Speed (mm/s) | 11435 |
| Power Supply 3 Phase (VAC) | 180-253 |
| Environment specification | OIL MIST |
| Power Supply (VAC) | 207-253 |
| Depth (mm) | 820 |
|---|---|
| Weight (kg) | 65 |
| Width (mm) | 242 |
| Height (mm) | 1080 |
| CE | COMPLIANT |
|---|
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 500 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 34000 |
| Steel (g) | 70 |
| Glass (g) | 0 |
| Other plastic (g) | 1080 |
| Wood (g) | 0 |
| Other paper (g) | 120 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | 9 |
| WEEE | B2B |
