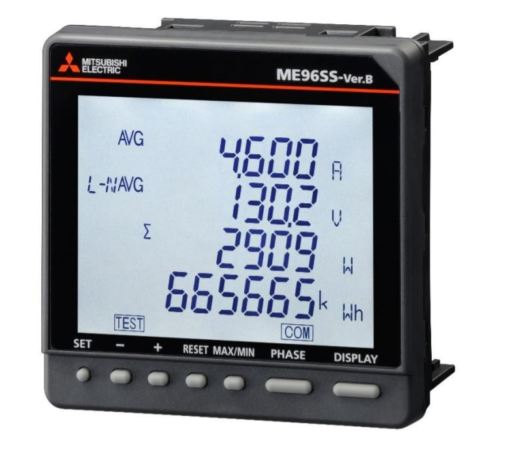

    498862-ME96SSEB-MB

    498862 - ME96SSEB-MB

    Material number 498862

    Multi-Measuring Instrument; MODBUS RTU; LCD with LED backlight

    Request for Quote Add to List
    FA-MMI: ENERGY MEASURING UNIT
    Series ME96 SERIES
    Type MULTI MEASURING INSTRUMENT
    Voltage Circuit 1-Phase 2P (V) 220/440
    Voltage Circuit 3-Phase 3P (V) 220/440
    Voltage Circuit 1-Phase 3P (V) 220/440
    Voltage Circuit 3-Phase 4P (V) 277/480
    Current Circuit (A) 1/5
    Frequency Range (Hz) 50/60
    Communication MODBUS RTU
    Display Type LCD WITH LED BACKLIGHT
    Display 1-3LINE:4DIGITS; 4LINE:6DIGITS
    Expandable NO
    Min. Ambient Temperature (°C) -5
    Max. Ambient Temperature (°C) 55
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 36
    Weight (kg) 0,3
    Width (mm) 96
    Height (mm) 96
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 63
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 693-98-1, 71868-10-5, 79-94-7, 3896-11-5, 7439-92-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
