Explore Mitsubishi Electric Products

    304059-EMU4-FD1-MB

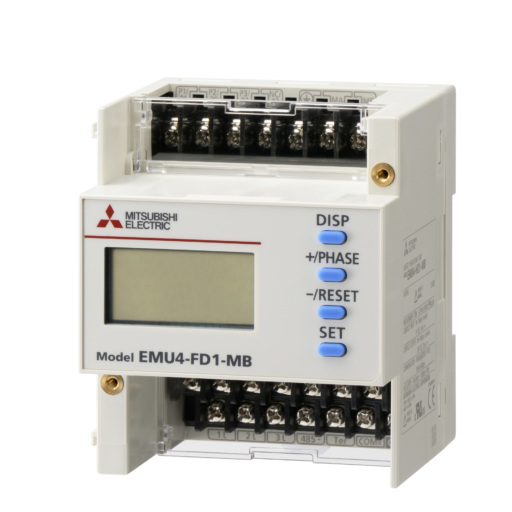

    304059 - EMU4-FD1-MB

    Material number 304059

    Multi-Measuring Instrument; EcoMonitorLight

    Request for Quote Add to List
    FA-MMI: ENERGY MEASURING UNIT
    Series EMU4 SERIES
    Type ENERGY MEASURING UNIT
    Voltage Circuit 1-Phase 2P (V) 110/220/440
    Voltage Circuit 3-Phase 3P (V) 110/220/440
    Voltage Circuit 1-Phase 3P (V) 110
    Voltage Circuit 3-Phase 4P (V) 63,5/110 - 277/480
    Current Circuit (A) 1/5
    Frequency Range (Hz) 50/60
    Communication MODBUS RTU
    Display Type LCD
    Display 2 LINES
    Expandable YES(CHECK COMPATIBLE PRODUCTS)
    Min. Ambient Temperature (°C) -5
    Max. Ambient Temperature (°C) 55
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 75
    Weight (kg) 0,3
    Width (mm) 75
    Height (mm) 90
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 57
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 13560-89-9, 12060-00-3, 7439-92-1, 108-78-1
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
