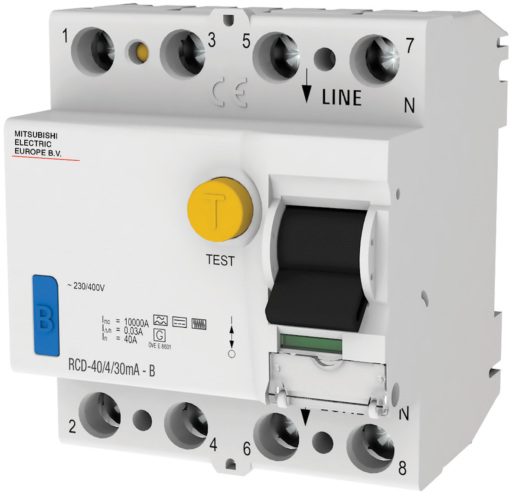

    719932-RCD-40/4/30mA - B

    719932 - RCD-40/4/30mA - B

    Material number 719932

    4-pole; 3N RCCB; 40A; 30mA; TypeG/B

    Request for Quote Add to List
    FA-MDRC: RCD
    Series MODULAR DIN RAIL COMPONENTS
    Type RCCB
    Rated Current (A) 40
    Rated Voltage (V) 230/400
    Current Type AC
    Number of Poles 4
    Cycles with Rated Current 4000
    Cycles without Rated Current 20000
    Rated Current Sensibility (mA) 30
    Pulsating Current Sensibility AC AND PULSATING DC
    Compliant with Standard(s) IEC/EN 61008
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 80
    Weight (kg) 0,32
    Width (mm) 70
    Height (mm) 71
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 0
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 22,50
    ENVIRONMENTAL
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
