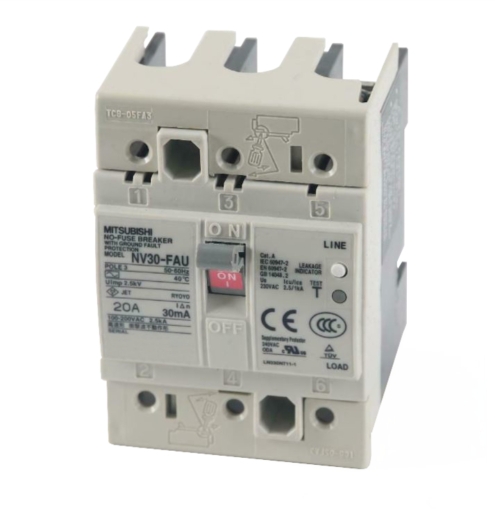

Material number 599235
Earth-leakage Breaker 3pole; In=20A; 30mA; AC100-240V
| Series | WS SERIES - ELCB |
|---|---|
| Type | NV-UL 489 LISTED |
| Frame Size | 30 |
| Rated Current (A) | 20 |
| Current Type | AC |
| Number of Poles | 3 |
| Rated Voltage (V) | 100-240 |
| Rated Current Sensibility (mA) | 30 |
| Max. Operating Time (s) | 0,04 |
| Compliant with Standard(s) | CSA C22.2 NO.5, EN 60947-2, IEC 60947-2, UL 489 |
| Automatic Tripping Device | THERMAL |
| Depth (mm) | 73,5 |
|---|---|
| Weight (kg) | 0,22 |
| Width (mm) | 60 |
| Height (mm) | 72 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | NON-COMPLIANT |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 20,5 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
